1982 R 80 GS - Front Cover Engine Cover Issue

5 Posts
3 Users
0 Reactions
37 Views
Russell Becker
(@russell-becker)
Posts: 1
New Member
Topic starter


1982 R 80GS - no spark on my R80...got a re-built bean can and installed the unit...set the timing...bike fired right up and ran good.  Disconnect the battery cable to re-install the front cover.  Tight fit as always...got it on...re-connected the battery, no spark bike would not start.  Disconnected the battery - took off the cover...round 2 - bike starts...no issues...disconnected the battery re-installed the cover...nothing ???  No spark...bike will not start.  New one for me...and ideas ???  What am I doing wrong ??

This topic was modified 1 week ago by Russell Becker

Posted : 05/24/2025 18:22
Richard W
(@wobbly)
Posts: 2652
Member


It is possible to pinch the points wire between the cover and the engine when tightening the 2 front cover screws. Tightening the screws breaks through the insulation on the wire and shorts out the ignition system. That 1 wire needs to be positioned very, very carefully, "and you need to hold your mouth right" during the entire process.

Even home mechanics who have replaced that cover hundreds of times can pinch that wire.

If that's the issue and raw copper is left exposed on that wire, then you may need to add some heat shrink to make sure no contact is made when the cover is properly installed.

Owning an old Airhead is easy.
Keeping an old Airhead running great is the true test.


Posted : 05/25/2025 06:25
Rick Schroeder
(@red-horse)
Posts: 60
Trusted Member

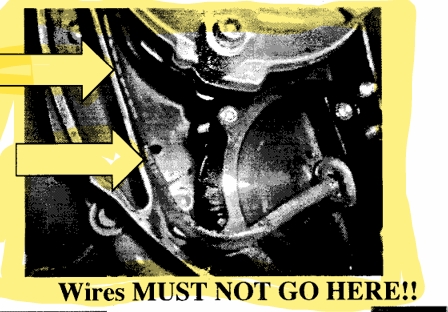

Russell, Just want to reenforce what Richard said.  I've attached portions of instructions from MOTORRAD ELECTRIK for installing their Alpha ignition system.  Rick makes it pretty clear on where to route the wires from the bean can up to the voltage regulator.  I've experienced this issue in the past and the solution was rerouting the wires.  As Richard said check for bare wires and insulate them.

rick Schroeder #12173

81 R100RT


Posted : 05/25/2025 11:55
Rick Schroeder
(@red-horse)
Posts: 60
Trusted Member

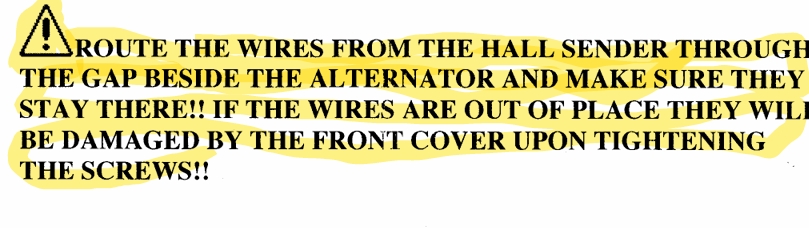

Russell,  I could'nt get both pics in the original reply, so i'm adding this to show what MOTORRAD ELECTRIK stresses.

good luck

redhorse 12173


Posted : 05/25/2025 12:00
Richard W
(@wobbly)
Posts: 2652
Member


There is no place to mount a physical restraint for the wire. But if you clean several spots on the inner case, a glob of silicone sealer can be used to route the wire and physically keep it out of harm's way.

Owning an old Airhead is easy.
Keeping an old Airhead running great is the true test.


Posted : 05/26/2025 04:51
