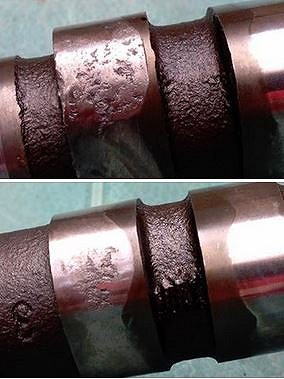

Camshafts, broken cam tips, cam sprockets, lifters (followers), alternator & cam seals, crank nose bearing, etc. Sports-cams installations. Assembly lubricants.

STOCK, original equipment camshafts: For the stock cams, at .0787" valve lift (2 mm), the timings are as follows, keep in mind that two types of these cams installation available, the 3° advanced one & the not advanced one. R50/5, R60/5, and R60/6 to 1975: BMW issued a SI on that camshaft, saying that some published information was NOT correct. BMW said the correct figures are: Intake Opens TDC; Intake Closes 40° ABDC; Exhaust Opens 40° BBDC; Ex Closes was illegible, but I am sure it said 40° BTDC. If you were to look up the sprocket and camshaft in the present parts fiche, it would be 11-31-1-250-253, sprocket. 284° camshaft, used UP TO 09/1975, 11-31-1-259-262. UNfortunately, BMW is confusing itself. You will find that other manuals say Intake Opens 40°ATDC....all the numbers are 40°; that includes the intake opening at 40° ATDC.
The remainder of this article is only available for Airheads Beemer Club members. Please login or purchase a membership here to join the Airheads Beemer Club, after which you will enjoy access this article and all members only content of the ABC web site.
