Wiring Color Codes

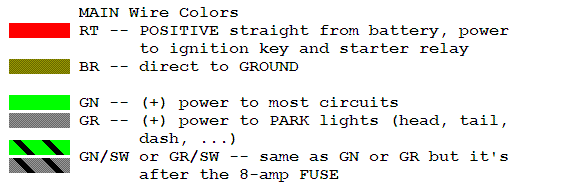

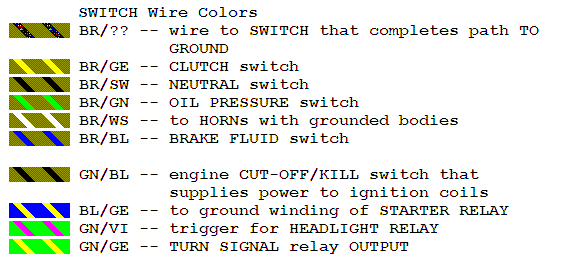

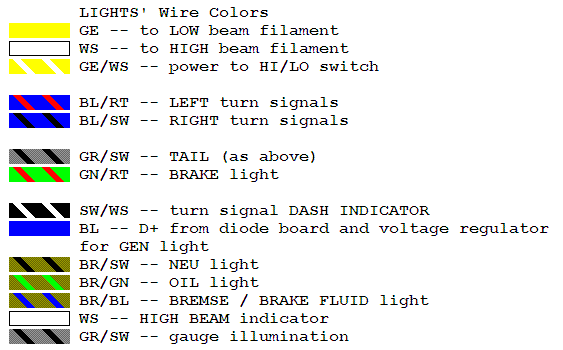

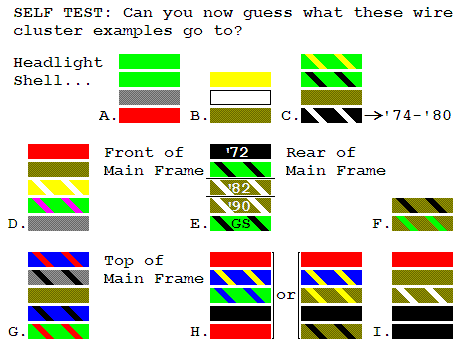

This covers most of the basic wire colors used on Airheads.  As the electronics got more complex, more combinations came into play so it’s possible a few of the more obscure ones may see other uses.  Always double check factory wiring diagrams, and yes, even they can have a mistake or two.  PowerBoxer.de has a copy of the Haynes ones. And here’s a link for more about Airhead relays and terminal designations.
